AuxiliarySystem

←

→

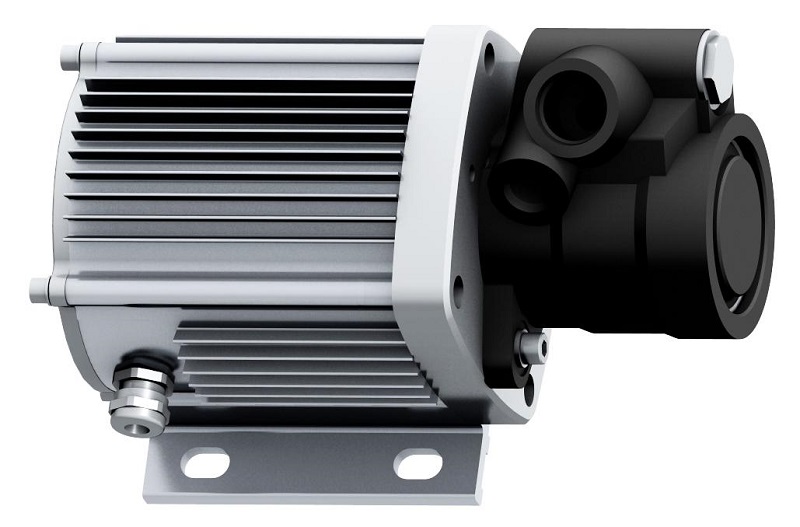

Electric help pump

Dimensions:
IP level:IP54
Work temperature:
Communication method：
Working voltage：280～400 V(Low pressure) 400～750 V(High pressure)

Support phone:0755-23911390

Performance parameters:

Type	SC-HS016TZ8501(Low pressure) SC-HS016TZ8502(High pressure)	Weight(kg)	14
Maximum work pressure(Bar)	85	Noise(dB/m)	<48
Maximum input power(w)	2200	Working voltage(V DC)	280～400(Low pressure) 400～750(High pressure)
Flow(L/min)	16	Working current(A)	<5.5
Rating speed (r/min)	1500	Maximum speed(r/min)	1800
Protection level	IP54

Technical features:

● Low noise;

● Having seismic design;

● The size is small, only half of the asynchronous machine;

● Use high -efficiency permanent magnet synchronous motor.
